gallery — Gallery

A set of images as a responsive grid or an arrow slider.

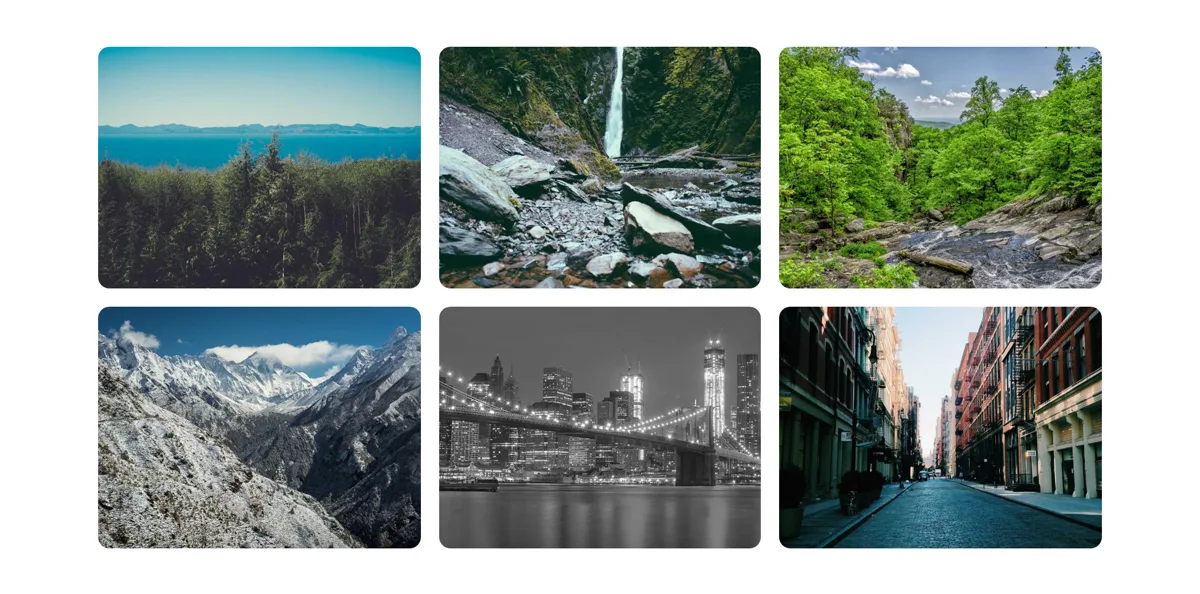

Renders a collection of images either as a grid (column count is configurable) or as a slider with prev/next arrows. Shared controls: object-fit and rounded corners. The max_columns option caps how many columns the editor can choose.

When to use

Portfolios, product shots, logo walls, before/after strips.

Configuration

Configure under content_blocks_kit.blocks.gallery (see Configuring blocks for how the levers combine).

Options

Block-level knobs, set under options:.

Option	Default
max_columns	6

Choice fields

Selectable values. Restrict or reorder them per host with choices: (the default is shown in bold).

Field	Values
layout	grid, slider
columns	2, 3, 4, 5, 6
fit	cover, contain

Default data

Initial values for a new block. Override per host with defaults:.

Field	Default
layout	grid
columns	3
fit	cover
borderRadius	{"linked":true}
items	[{"src":"","alt":"","caption":"","link":""}]

Example

# config/packages/content_blocks_kit.yaml
content_blocks_kit:
    blocks:
        gallery:
            options: { max_columns: 6 }
            choices: { layout: [grid, slider] }   # restrict / reorder the picker
            defaults: { layout: grid }

Front-end

Rendered markup: .cb-kit-gallery (grid) / .cb-kit-gallery--slider (slider). Style it by overriding the --cb-kit-* custom properties (see the kit stylesheet).

Requires a Stimulus controller

Enable the cb-gallery controller under @klehm/content-blocks-kit in your host assets/controllers.json.

Notes

• The cb-gallery controller is only needed for the slider layout; a pure grid is CSS-only.
• Use the max_columns option to restrict the columns choice list for a given host.

---

The configuration tables above are generated from content-blocks-kit:blocks --format=json, read straight from the block's code — they never go stale.
